Lesson 3. Stacks and Queues

Lesson Notes

Stack Data Structure

Imagine a stack of textbooks. New books are always placed on top, and when you need a book, you take the one from the top as well. This follows a "Last In, First Out" (LIFO) principle. Essentially, a stack is a data structure that allows for two primary operations: adding an item to the top, removing an item from the top, and checking if the stack is full or empty.

These methods could be written to implement the required functionality of a stack:

• push(item) – adds item to the top of the stack
• pop() – removes and returns the item on the top of the stack
• isFull() – checks if the stack is full
• isEmpty() – checks if the stack is empty

You might also want to write methods to:

• peek() – return the top item without removing it
• size() – return the number of items on the stack

Stack Implementation - Array

A stack can be effectively implemented using an array. The key to this implementation lies in three variables:

1. STACK: This is the array itself, where elements will be stored.
2. TOP: This variable points to the index of the array where the top element of the stack is currently located. It essentially acts as a marker for the stack's boundary.
3. MAX: This constant defines the maximum number of elements the stack can hold, setting a limit to the array's size.

By utilizing these variables, we can simulate the LIFO (Last In, First Out) behavior of a stack. When an element is added (pushed) to the stack, it's placed at the index indicated by TOP, and then TOP is incremented to point to the next available position. Conversely, when an element is removed (popped) from the stack, the element at the index pointed to by TOP is retrieved, and TOP is decremented to reflect the new top of the stack.

To determine if the stack is full or empty, we compare the value of TOP with MAX and -1 respectively. If TOP equals MAX, the stack is full; if TOP equals -1, the stack is empty.

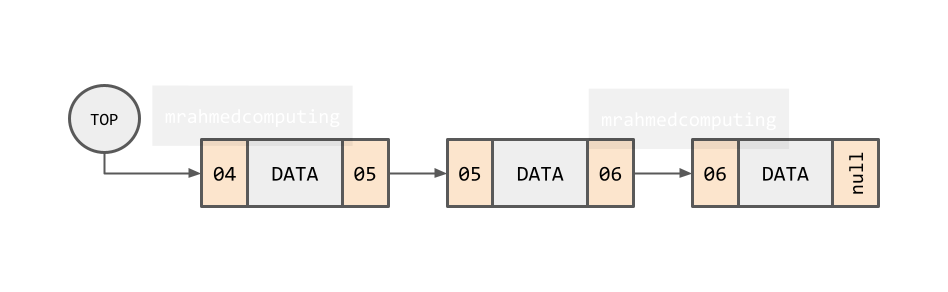

Stack Implementation - Linked Lists

This method uses a dynamic data structure to represent the stack. You don't need to define the max number of elements.

A stack can also be efficiently implemented using a linked list. In this approach, each element of the stack is represented as a node in the linked list. The crucial variable here is:

• TOP: This pointer holds the address of the topmost element in the linked list, which represents the top of the stack.

How could it works?

Push operation:

• Create a new node to hold the data to be pushed.
• Set the next pointer of the new node to point to the current TOP.
• Update TOP to point to the new node.

Pop operation:

• If the stack is empty (TOP is null), return an error.
• Store the data of the current TOP node.
• Update TOP to point to the next node in the linked list.
• Return the stored data.

isEmpty operation:

• Check if TOP is null. If it is, the stack is empty.

By using a linked list, the stack can dynamically grow or shrink as needed, unlike an array-based implementation which has a fixed size. This flexibility makes it suitable for scenarios where the number of elements in the stack is unpredictable.

Additionally, linked list implementation often provides better memory efficiency compared to arrays, as it avoids the need for pre-allocating a fixed-size block of memory. This approach maintains the LIFO (Last In, First Out) behavior of a stack while offering the advantages of linked lists in terms of dynamic size and memory management.

Adding to a Stack:

Stack Method - Push

Removing from a Stack:

Stack Method - Pop

Stacks in Java

import java.util.Stack;
public class StackExample {
    public static void main(String[] args) {
        // Create a stack
        Stack<Integer> stack = new Stack<>();
        // Push elements onto the stack
        stack.push(1);
        stack.push(2);
        stack.push(3);
        // Pop elements off the stack
        int element1 = stack.pop();
        int element2 = stack.pop();
        int element3 = stack.pop();
        // Print the elements that were popped off the stack
        System.out.println(element1); // 3
        System.out.println(element2); // 2
        System.out.println(element3); // 1
    }
}

Stacks in Python 3

stack = []
# append() function to push element in the stack
stack.append('a')
stack.append('b')
stack.append('c')
print('Initial stack')
print(stack)
# pop() function to pop element from stack in
# LIFO order
print('\nElements popped from stack:')
print(stack.pop())
print(stack.pop())
print(stack.pop())
print('\nStack after elements are popped:')
print(stack)
# uncommenting print(stack.pop()) will cause an
# IndexError as the stack is now empty

Application of Stacks

Queue Data Structure

A linear data structure that follows the First In First Out (FIFO) principle. This means that the first element added to the queue is the first element removed from the queue.

Here are the basic operations of a queue:

• Enqueue: Add an element to the end of the queue.
• Dequeue: Remove an element from the front of the queue.
• Peek: Get the value of the element at the front of the queue without removing it.
• IsEmpty: Check if the queue is empty.
• IsFull: Check if the queue is full.

Queue Implementation - Array

A queue is a First In First Out (FIFO) data structure. We can implement a queue using an array by utilizing the following variables:

• QUEUE: This is the array itself, where elements will be stored.
• FRONT: This index points to the front of the queue, indicating the element to be removed next.
• BACK: This index points to the rear of the queue, indicating where the next element should be inserted.
• MAX: This constant defines the maximum capacity of the queue.

Key operations:

Enqueue (Adding an element):

• Increment the BACK index.
• If BACK exceeds MAX - 1, we've reached the end of the array. To handle this, we can either resize the array or implement a circular queue (where the array is treated as circular).
• Insert the new element at the BACK index of the QUEUE.

Dequeue (Removing an element):

• If the queue is empty (FRONT is equal to BACK), return an error.
• Store the element at the FRONT index.
• Increment the FRONT index.

isEmpty:

• Check if FRONT is equal to BACK. If true, the queue is empty.

isFull:

• Check if BACK is equal to MAX - 1. If true, the queue is full.

By using these variables and operations, we can effectively implement a queue using an array, providing a basic foundation for managing elements in a FIFO order.

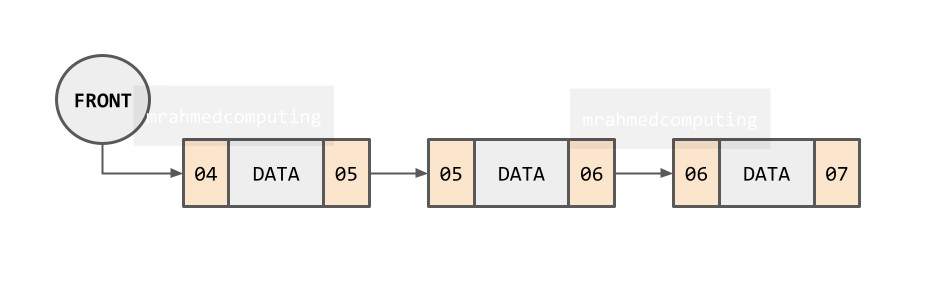

Queue Implementation - Linked List

Queues can be implemented in a variety of ways, but the most common implementation is using a linked list. In a linked list, each element in the queue contains a pointer to the next element in the queue. The front of the queue is simply the first element in the linked list, and the rear of the queue is the last element in the linked list.

Adding to a Queue:

Queue Method - Enqueue()

Enqueue adds an element to the end of the queue. Enqueue does this in the following steps:

Front pointer shows the front of the queue. Position 0 (A)

Back pointer shows the last item in the queue. Position 3 (D)

Front pointer shows the front of the queue. Position 0 (A)

Back pointer shows the last item in the queue. Position 4 (null)

Front pointer shows the front of the queue. Position 0 (A)

Back pointer shows the last item in the queue. Position 4 (E)

Removing from a Queue:

Queue Method - Dequeue()

Dequeue removes an element from the front of the queue. This is done in the following way:

Front pointer shows the front of the queue. Position 0 (A)

Back pointer shows the last item in the queue. Position 3 (D)

Front pointer shows the front of the queue. Position 0 (null)

Back pointer shows the last item in the queue. Position 3 (D)

Front pointer shows the front of the queue. Position 1 (B)

Back pointer shows the last item in the queue. Position 3 (D)

Checking contents of a Queue:

Queue Method - Peek()

Peek gets the value of the element at the front of the queue without removing it.. Peek does this in the following steps:

Front pointer shows the front of the queue. Position 0 (A)

Back pointer shows the last item in the queue. Position 3 (D)

Checking if a Queue is full:

Queue Method - isFull()

isFull is used to check if the queue is full. This is done in the following way:

Front pointer shows the front of the queue. Position 0 (A)

Back pointer shows the last item in the queue. Position 3 (D)

Checking if a Queue is empty:

Queue Method - isEmpty()

isEmpty is used to check if the queue is empty. This is done in the following way:

Front pointer shows the front of the queue. Position 0 (A)

Back pointer shows the last item in the queue. Position 3 (D)

FRONT = 0, FRONT == null?

Stacks in Python 3

# Initializing a queue
queue = []
# Adding elements to the queue
queue.append('a')
queue.append('b')
queue.append('c')
print("Initial queue")
print(queue)
# Removing elements from the queue
print("\nElements dequeued from queue")
print(queue.pop(0))
print(queue.pop(0))
print(queue.pop(0))
print("\nQueue after removing elements")
print(queue)
# Uncommenting print(queue.pop(0)) will raise and IndexError as the queue is now empty

Problems of Queues in Arrays

Problems arise with the implementation of a queue as a fixed-size array.

• How many items can be added? Or removed?
• What happens when the queue is full, but there are some free spaces at the front?
• How could these limitations could be overcome when using an array?

Linear Queues

• Linear data structure.
• Items added to the rear, removed from the front.
• Implemented as an array or linked list.

Simple standard queue structure. As demonstrated in our previous examples.

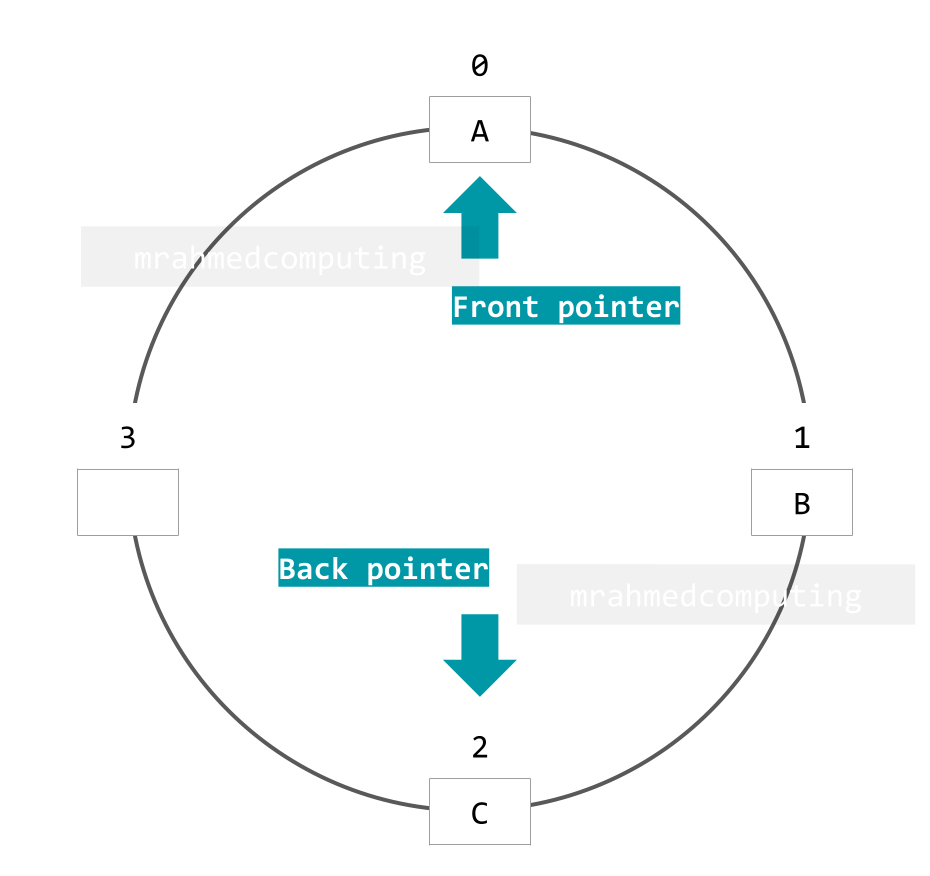

Circular Queues

• Variation of linear queue.
• Rear and front ends are connected.
• More efficient use of space.
• Order of operations may change.

Similar to the linear queue, except the last node is connected to the first.

A circular queue algorithm overcomes the problem of reusing the spaces that have been freed by dequeuing from the front of the array.

Ideal if you want to restrict the number of items and have a known memory footprint.

Particularly useful in game design where the number of objects can affect framerate. By spawning up to the limit of the queue.

Note: When the back pointer is in front of the front pointer, it indicates a circular queue.

Priority Queues

• Items have a priority.
• New elements inserted ahead of lower priority elements.
• Implemented as a heap or binary search tree.

In a priority queue, some items are allowed to ‘jump’ the queue.

This type of queue is used when the items arriving have some type of priority associated with them.

Items enter the queue in the normal FIFO system, but exit the queue based on the priority.

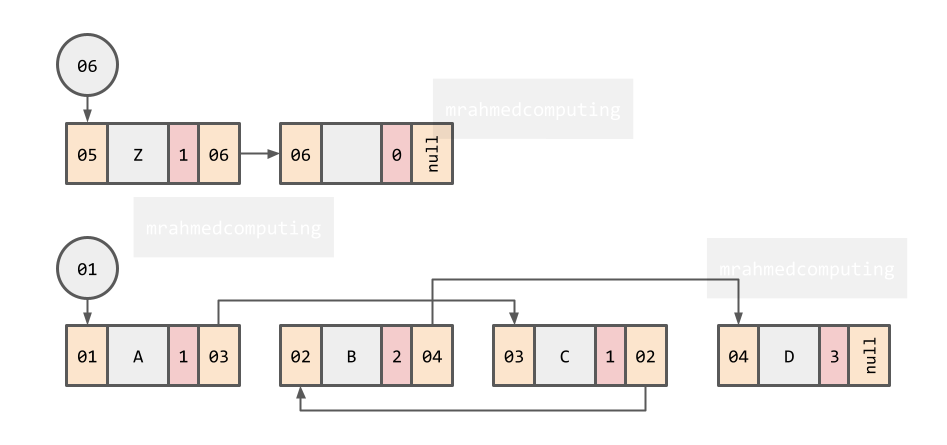

RAM	Address	Data	Priority	Pointer
	01	A	1	03
	02	B	2	04
	03	C	1	02
	04	D	3	null
	05	Z	1	06
	06		0	null

......

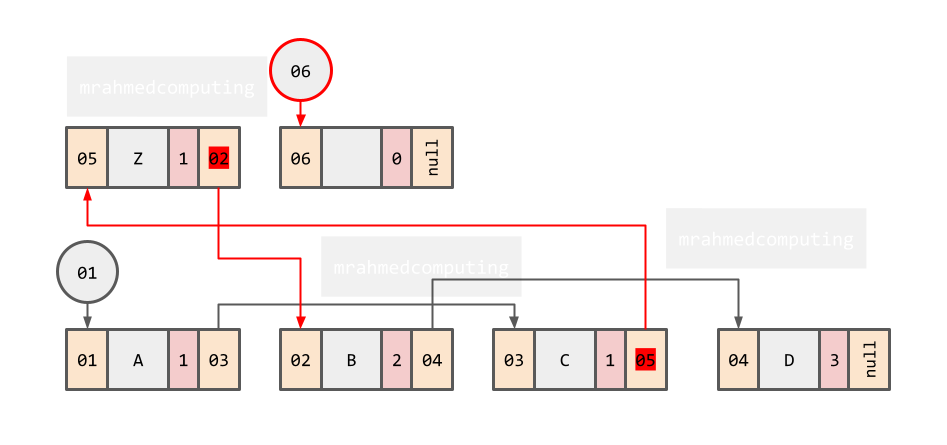

RAM	Address	Data	Priority	Pointer
	01	A	1	03
	02	B	2	04
	03	C	1	05
	04	D	3	null
	05	Z	1	02
	06		0	null

Applications of Queues

Queues are used in a variety of applications, including:

• Operating systems: Queues are used to manage tasks, such as printing and processing network packets.
• Computer networks: Queues are used to buffer data packets as they are transmitted over a network.
• Web servers: Queues are used to manage incoming requests from web clients.
• Event-driven programming: Queues are used to manage events, such as user input and timer events.
• Printers: page after page etc.

Queues are a versatile and efficient data structure that can be used to solve a wide variety of problems.
